Port & Logistics Equipment Camera Systems

SURROUND

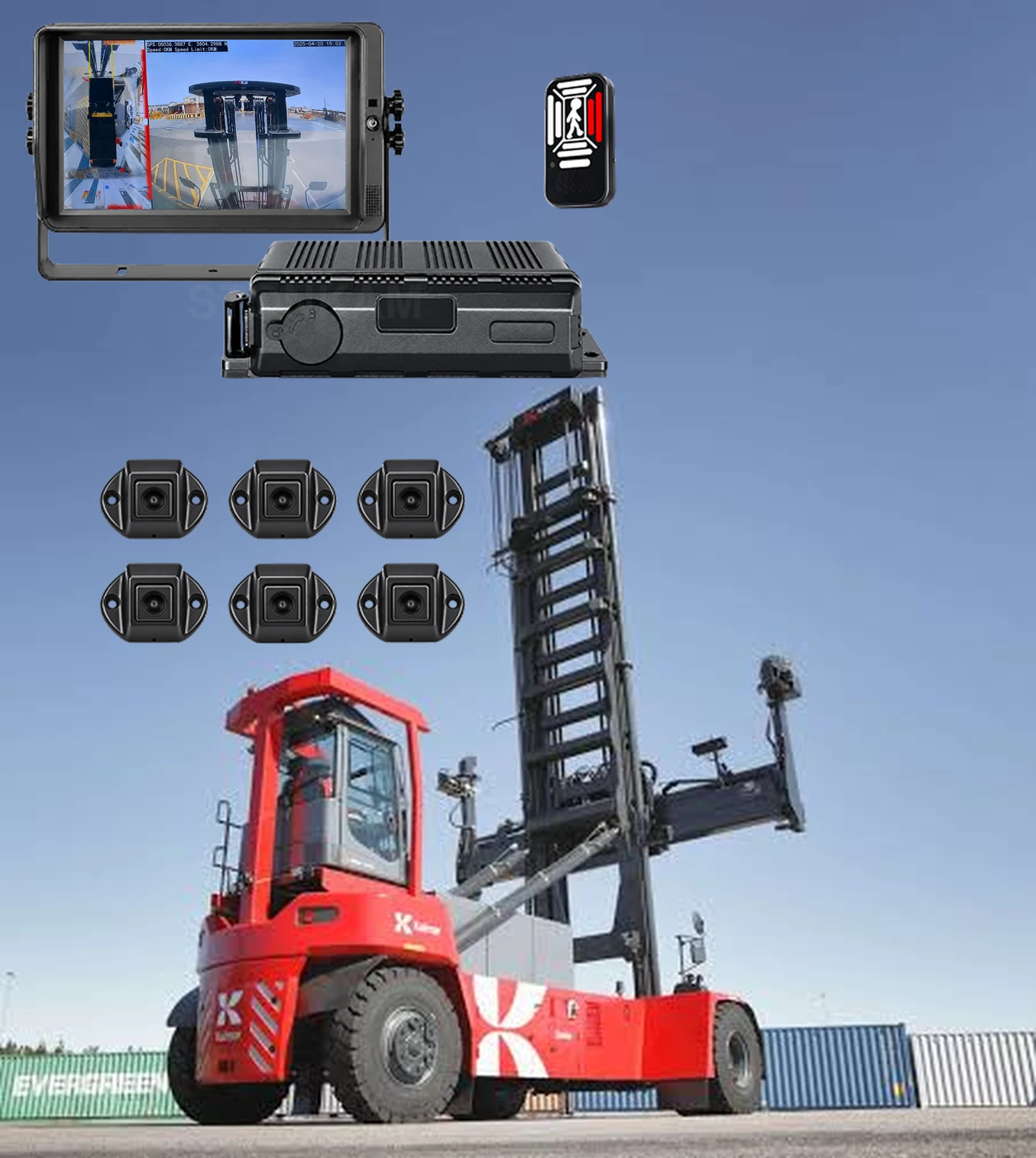

VST-S6301

VisionSure 6CH 1080P 360° Surround View Panoramic System

360° camera system that stitches six 1080P cameras into one bird's-eye view on a 10.1" monitor, with AI pedestrian detection on every side. For commercial fleets, articulated buses, long trailers and container trucks.

• SURROUND
• Industrial

Camera & image

6 x 1080P AHD ultra-wide cameras stitched into a seamless 360° bird's-eye view

Camera & image

2D and 3D view modes; also configurable as a 4-camera or 2-camera system

AI & detection

Dual-core AI processing, 2 TOPS

View details

Explore a 360° bird’s-eye view to see around the vehicle while manoeuvring in material-handling areas.

SENSE

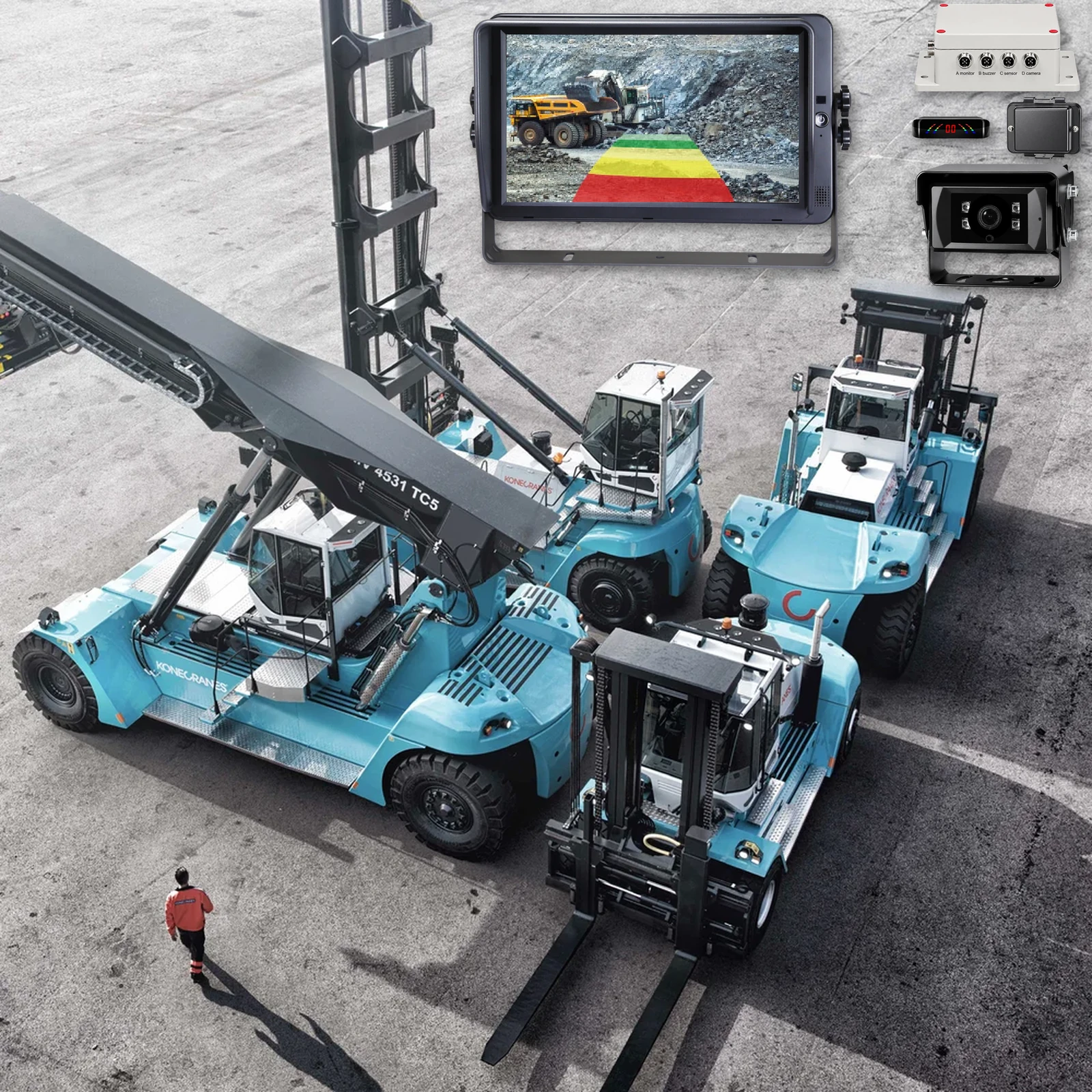

VST-S8501

VisionSure 77GHz Radar Detection System

Radar blind spot detection system that warns the operator of people and obstacles up to 40m behind the machine, with alarm zones shown over live 1080P video. For haul trucks, loaders and other large machines.

• SENSE
• Industrial

Capability

77GHz FMCW millimetre-wave radar (76–77GHz)

AI & detection

Detection range 0.2 to 40m, width up to 20m, ±15cm accuracy

Capability

120° horizontal / 14° vertical radar beam

View details

Use radar-based obstacle detection with configurable zones and visual and audible proximity alerts.

SPECIALTY

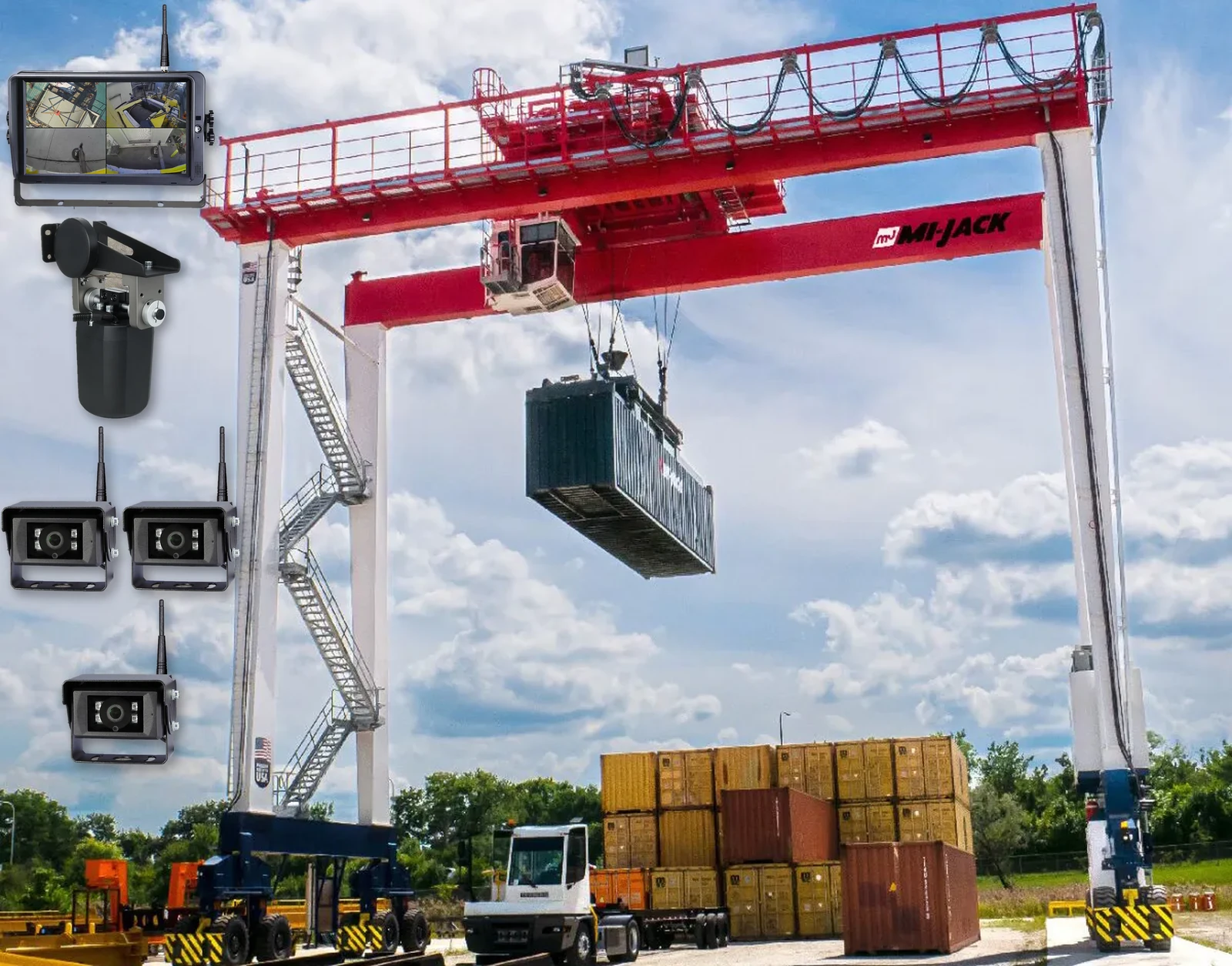

VST-S4901

VisionSure Boom-Tip Wireless Zoom Camera System

Wireless boom tip camera with 30x zoom that shows the hook and load on a 10.1" monitor in the cab, with no cable down the boom.

• SPECIALTY
• Wireless

AI & detection

30x optical zoom plus 5x digital zoom, 1080P, 1/2.9" sensor, integrated AI pedestrian detection

Camera & image

Horizontal view 57.69° (wide) to 2.2° (telephoto), visible distance 5 to 200m

Display & controls

Autofocus with near/far focus and one-touch autofocus

View details

For crane-based lifting, explore wireless zoom from the boom tip with operator-controlled magnification.

RECORD

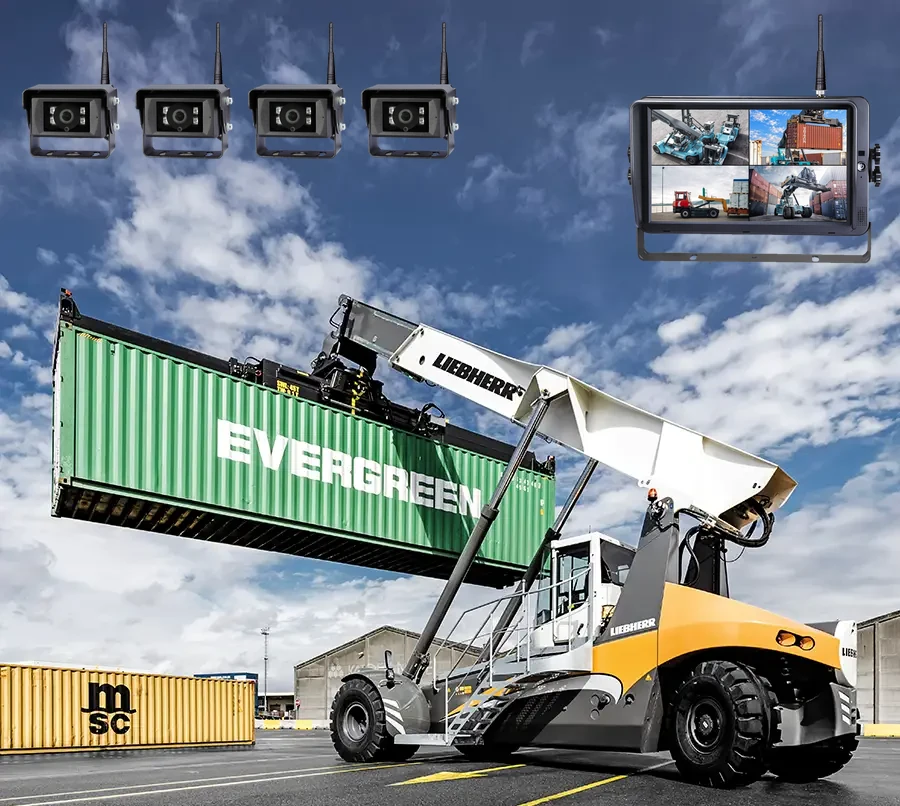

VST-S4203

VisionSure Wireless 4CH Recording Quad-View Monitor System

Wireless 4-channel system with a 7" quad-view monitor that records every camera, with no cable to run through the chassis. For cranes, loaders, haulers, trailers and tractors.

• RECORD
• Wireless

Display & controls

7" LCD Display, 1024 x 600

Wireless connection

4-channel 2.4GHz wireless

Wireless connection

Transmission distance up to 300m

View details

Add cable-free camera views and four-channel recording around cargo-handling equipment and shared work areas.

SEE

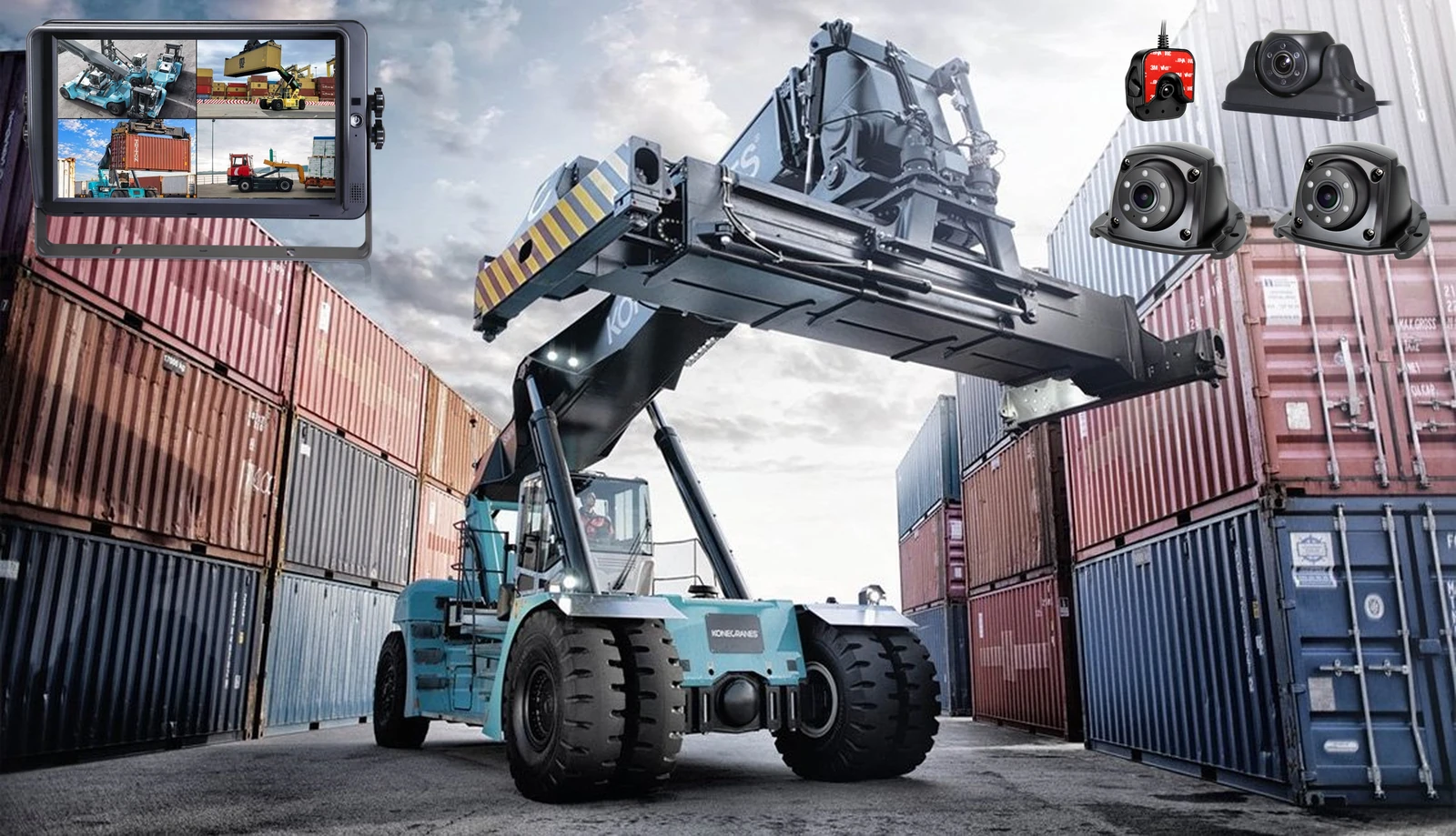

VST-S4102

VisionSure Wired 4CH Quad-View Monitor System

Wired 4-channel monitor system with a 7" HD quad-view touchscreen for live views around the machine, day or night. For crews who need to see the blind zones but not record them.

• SEE
• Industrial

Display & controls

7" HD quad-view touchscreen monitor

Camera & image

4 camera inputs

Camera formats

Camera formats: 1080P, 720P, PAL, NTSC

View details

Use a wired quad-view monitor for live views around cargo-handling equipment.

RECORD

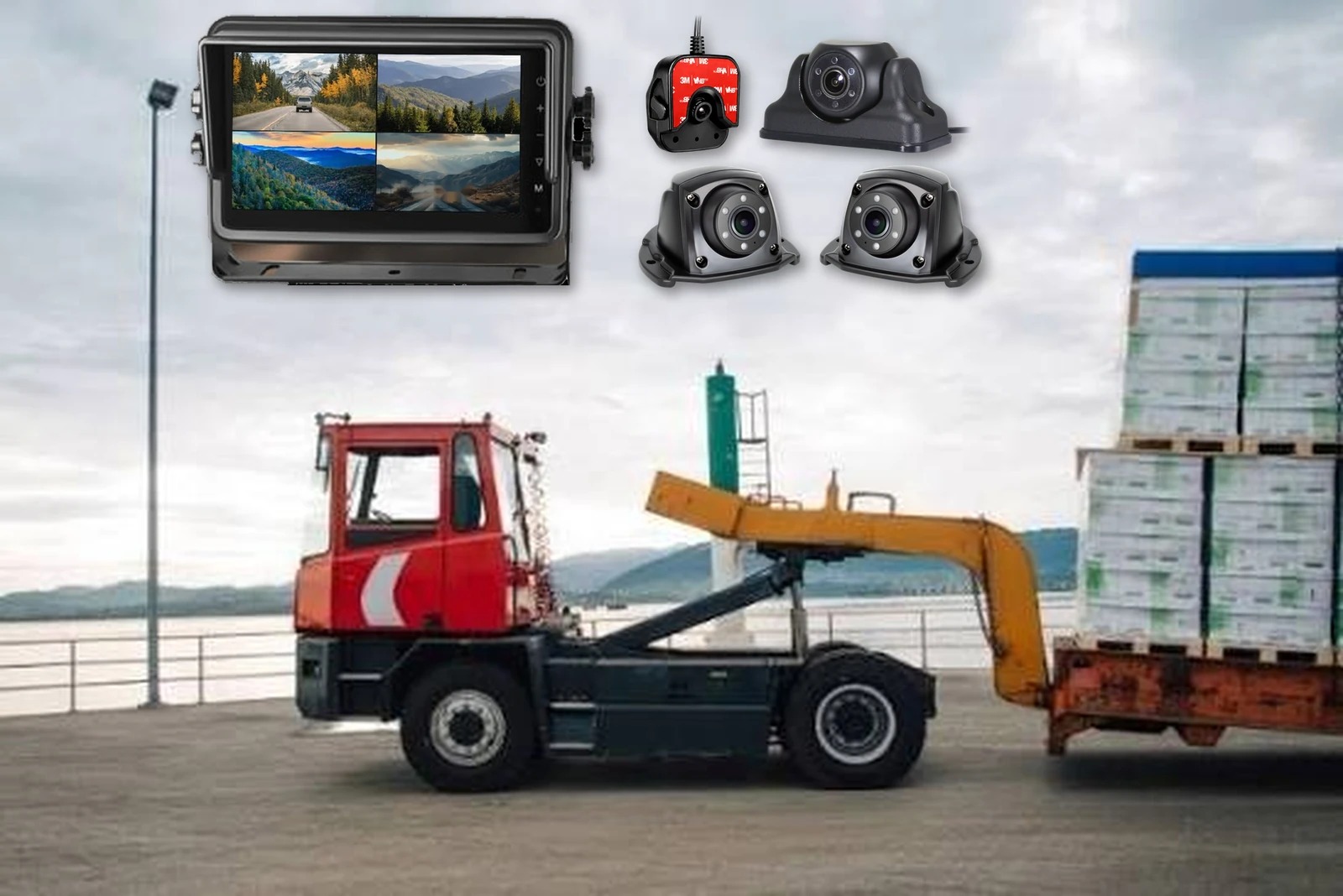

VST-S4202

VisionSure 7" HD Recording Monitor System

Backup camera monitor with a built-in DVR in one sealed 7" IP66 unit. Shows and records up to four cameras and works with most existing camera signals. For tractors, excavators, trucks and buses.

• RECORD
• Industrial

7" high-brightness IPS touchscreen, 1024 x 600, 16

7" high-brightness IPS touchscreen, 1024 x 600, 16:9

600 cd/m² brightness, 700

600 cd/m² brightness, 700:1 contrast, 85° viewing angle U/D/L/R

Recording

Built-in DVR with loop and alarm-triggered recording

View details

Explore recorded camera views around cargo-handling equipment with a compact 7-inch DVR monitor, GPS and onboard storage.
