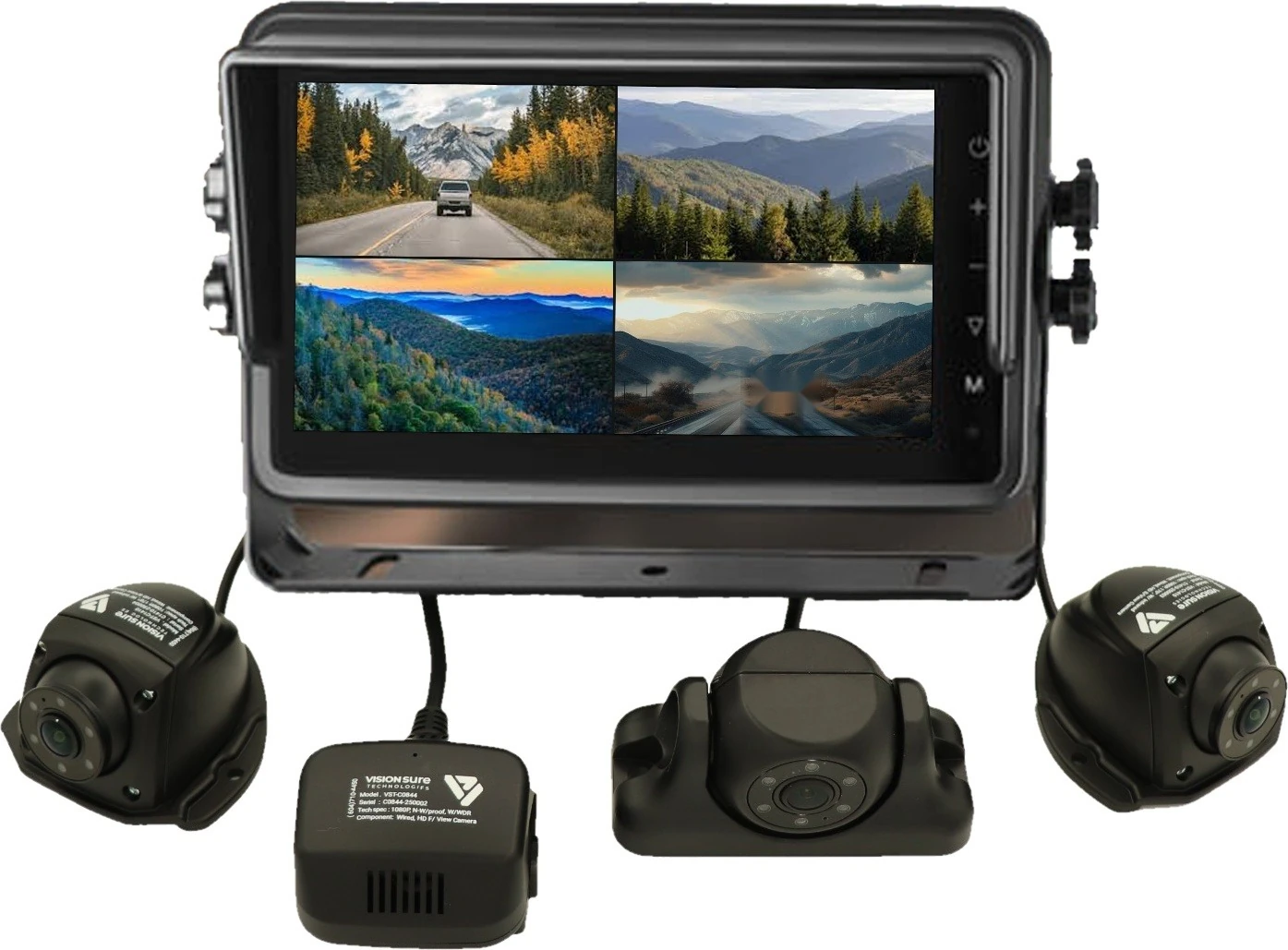

VST-S4202
Backup camera monitor with a built-in DVR in one sealed 7" IP66 unit. Shows and records up to four cameras and works with most existing camera signals. For tractors, excavators, trucks and buses.
The VisionSure VST-S4202 7” HD Recording Monitor System is a backup camera monitor with DVR built into one sealed unit. Many machines already have a backup camera but no way to record it. The VST-S4202 replaces the screen in the cab with a 7” touchscreen that shows and records up to four cameras. There is no separate recorder box to mount, wire or keep dry, which suits open cabs on tractors and excavators.
Loop recording saves video continuously to a microSD card of up to 1TB, and the card slot locks so the card stays put. The G-sensor and four alarm inputs start event recording, and GPS logs where the vehicle was at the time. The footage is there for incident review, damage disputes and driver coaching.
The monitor accepts CVBS, TVI, AHD, CVI and IPC camera signals. That covers most analog and HD cameras already fitted to trucks and machines, so recording can be added without replacing cameras that still work. With four inputs, a rear camera, two side cameras and a front or load camera can all run to the same screen.
The monitor checks itself and warns the operator when a picture is frozen, blurred or blocked. A lens covered in mud or a failed connection shows up as an alert, instead of a still image that looks normal at a glance. The operator can clean the lens or report the fault before relying on that view.
The housing is sealed to IP66 against rain, snow and washdowns, so the monitor can go in open cabs and exposed positions. The 1024 x 600 IPS screen, and an 85° viewing angle in every direction. It runs on 10–32V DC, with a CVBS output and optional network streaming and CANBUS, RS485 and RS232.
| Specification | Description |
|---|---|
| 7" high-brightness IPS touchscreen, 1024 x 600, 16 | 7" high-brightness IPS touchscreen, 1024 x 600, 16:9 |
| 600 cd/m² brightness, 700 | 600 cd/m² brightness, 700:1 contrast, 85° viewing angle U/D/L/R |
| Recording | Built-in DVR with loop and alarm-triggered recording |
| Storage | Lockable microSD card slot, up to 1TB |
| Display & controls | 4-channel video input with split-screen and adjustable PIP layouts |
| Camera & image | Compatible with CVBS, TVI, AHD, CVI and IPC cameras |
| Capability | Self-diagnosis with frozen, blurred and obstructed image alerts |
| Positioning | GPS, G-sensor and IR supported |
| Triggers & events | 4 alarm inputs |
| Operating environment | IP66 waterproof housing |
| Display & controls | Touch, button and IR remote control |
| Connectivity | CVBS output; optional network streaming and CANBUS/RS485/RS232 |
| Power | 10–32V DC power |
| Part Number | Component | Status |
|---|---|---|
| VST-M4877 | 7" HD DVR Quad-view Monitor with GPS | Included |
| VST-C3759 | Front 1080P WDR Camera | Included |
| VST-C8830 | 150° HD Side-view, IR Night Vision Camera | Included |
| VST-C8645 | 130° HD Rear-view, IR Night Vision Camera | Included |
The VisionSure VST-C3759 1080P WDR Front Camera is a 1080P forward facing camera for trucks, buses and fleet vehicles. Driving into low sun, out of a tunnel or through heavy shadow makes a standard camera wash out or go dark. The VST-C3759 uses 105dB Wide Dynamic Range (WDR) to balance the bright and dark parts of the same scene, so the road ahead stays readable.
Clear forward footage day and night: A 1/2.9" progressive-scan CMOS sensor records full 1080P (1920 x 1080) at 25 or 30fps, with automatic exposure and white balance. It still gives a usable picture down to 0.1 Lux. That gives clear footage for incident review, driver coaching and settling disputes.
The forward view for AI warnings: Connected to a VisionSure AI mobile DVR such as the VST-S8401, the VST-C3759 provides the forward view used for ADAS functions such as forward collision warning. It records the road ahead whether or not the AI functions are switched on.
No drilling: The camera mounts inside the windshield with 3M VHB double-sided adhesive, so there is no drilling or change to the vehicle. The angle can be adjusted after mounting to set the right view for each windshield.
Built for the road: The VST-C3759 is rated to operate from -20°C to +70°C and to be stored from -30°C to +80°C, at up to 95% humidity. It runs on 10–32V DC.
Where it's used: The VST-C3759 is the forward camera in the VisionSure VST-S4201 quad-view DVR kit and the VST-S8401 8CH AI mobile DVR system. It suits buses, coaches, trucks and commercial fleet vehicles.
