VST-S4203

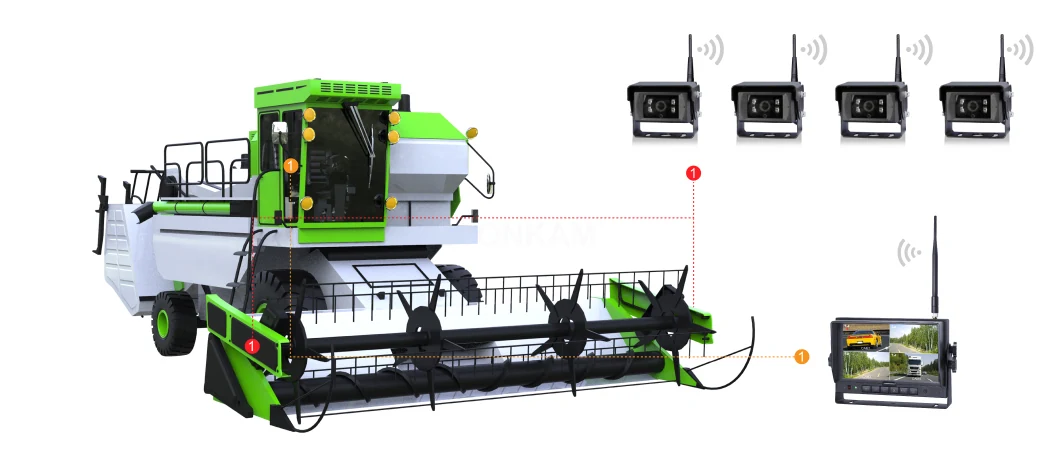

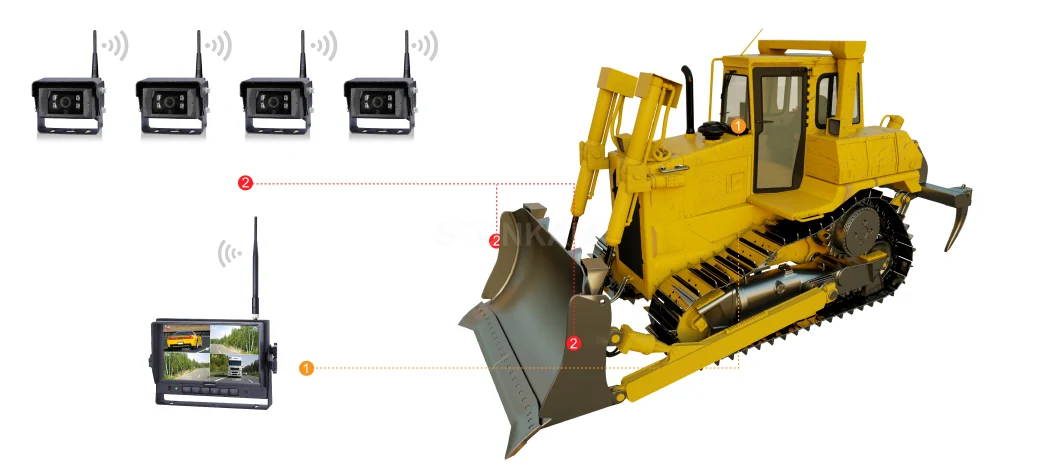

Wireless 4-channel system with a 7" quad-view monitor that records every camera, with no cable to run through the chassis. For cranes, loaders, haulers, trailers and tractors.

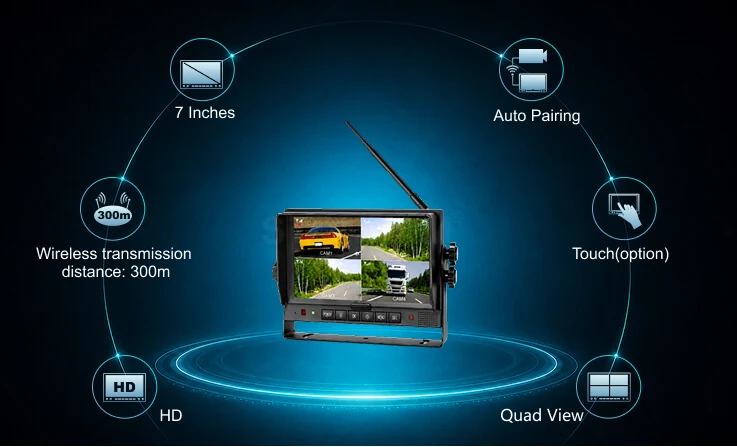

The VisionSure VST-S4203 Wireless 4CH DVR Quad-View Monitor System is a wireless backup camera system for machines where running cable through the chassis isn’t realistic. Articulated haulers, loaders, trailers and tractors flex, swivel and get swapped between jobs. Every hard-wired cable run is one more thing to snag or chafe. The VST-S4203 pairs four heated wireless cameras to a 7” quad-view monitor in the cab. Each camera only needs a power connection where it mounts.
Video travels over 2.4GHz digital wireless, and a 200ms delay. The rated range is up to 300m. Cameras pair manually or automatically, so a camera moved to a different trailer or implement can be paired again from the cab.

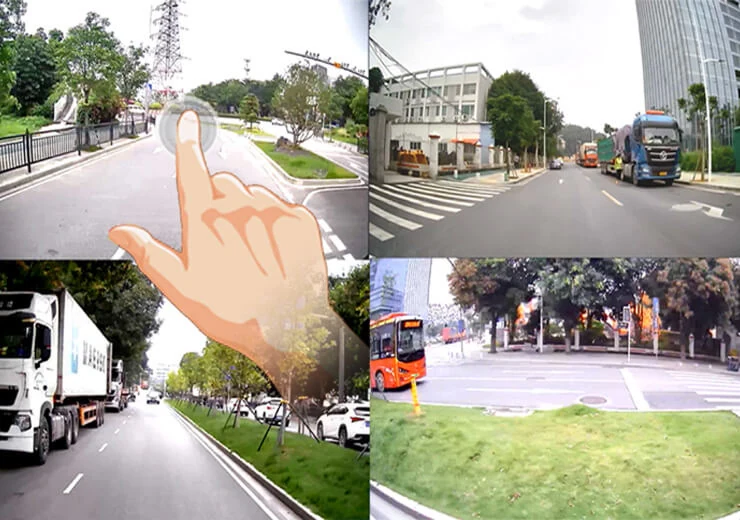

Five trigger inputs bring a view to the screen when it is needed. Four call up a single camera and one calls up a split view, such as reverse, the turn signals or a work light. Trigger delay and priority can be adjusted, so the most important view wins when two triggers fire at once.

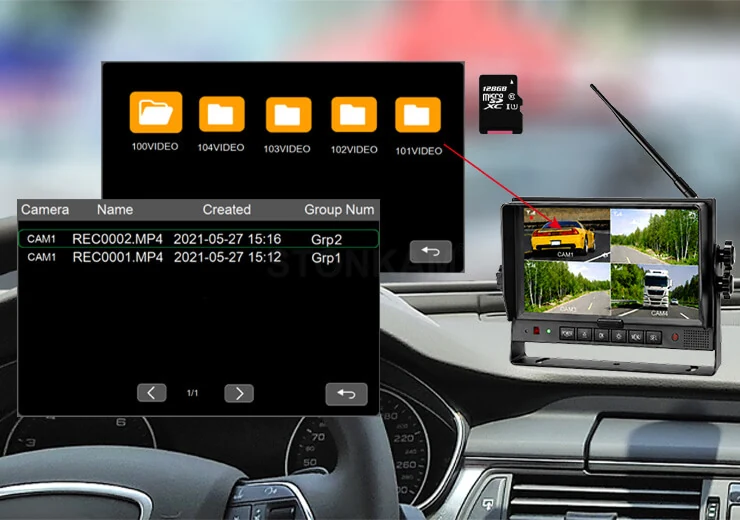

The built-in recorder saves real-time video from all four channels to a microSD card of up to 128GB, with playback on the monitor. A supercapacitor protects the recording if power fails. The footage is there for incident review, damage disputes and checking what happened in a blind zone.
Reversing guide lines can be set, adjusted and calibrated to each machine, so they match its real width and the distance behind it. The monitor accepts 1080P and 720P wireless cameras. The kit’s VST-C6792 cameras have a 130° view and a built-in heater for cold mornings.
The 1024 x 600 screen has 600 cd/m² brightness, 700:1 contrast and a 16:9 layout. Automatic brightness dims the screen three seconds after it gets dark, so it doesn’t dazzle the operator on night shifts. The monitor runs on 10–32V DC and operates from -20°C to +70°C.
| Specification | Description |
|---|---|
| Display & controls | 7" LCD Display, 1024 x 600 |
| Wireless connection | 4-channel 2.4GHz wireless |
| Wireless connection | Transmission distance up to 300m |
| Wireless connection | Manual and automatic pairing |
| Wireless connection | Accepts 1080P / 720P wireless cameras |
| Camera & image | Quad, split and single view; channels per layout user-set |
| Display & controls | Auto scan with selectable channels and dwell time |
| Camera & image | 5 trigger inputs (4 single view, 1 split view); adjustable delay and priority |
| Storage | Built-in recorder, 4CH real-time recording and playback, microSD up to 128GB |
| Power | Supercapacitor power-fail safeguard |
| Capability | Calibratable reversing guide lines |
| Display & controls | Automatic brightness adjustment |
| Display & controls | Touchscreen |
| Power | 10–32V DC power, 10W max |
| Capability | Operating -20°C to +70°C |
Supports up to four cameras; camera quantity is configured for your equipment.
| Part Number | Component | Status |
|---|---|---|

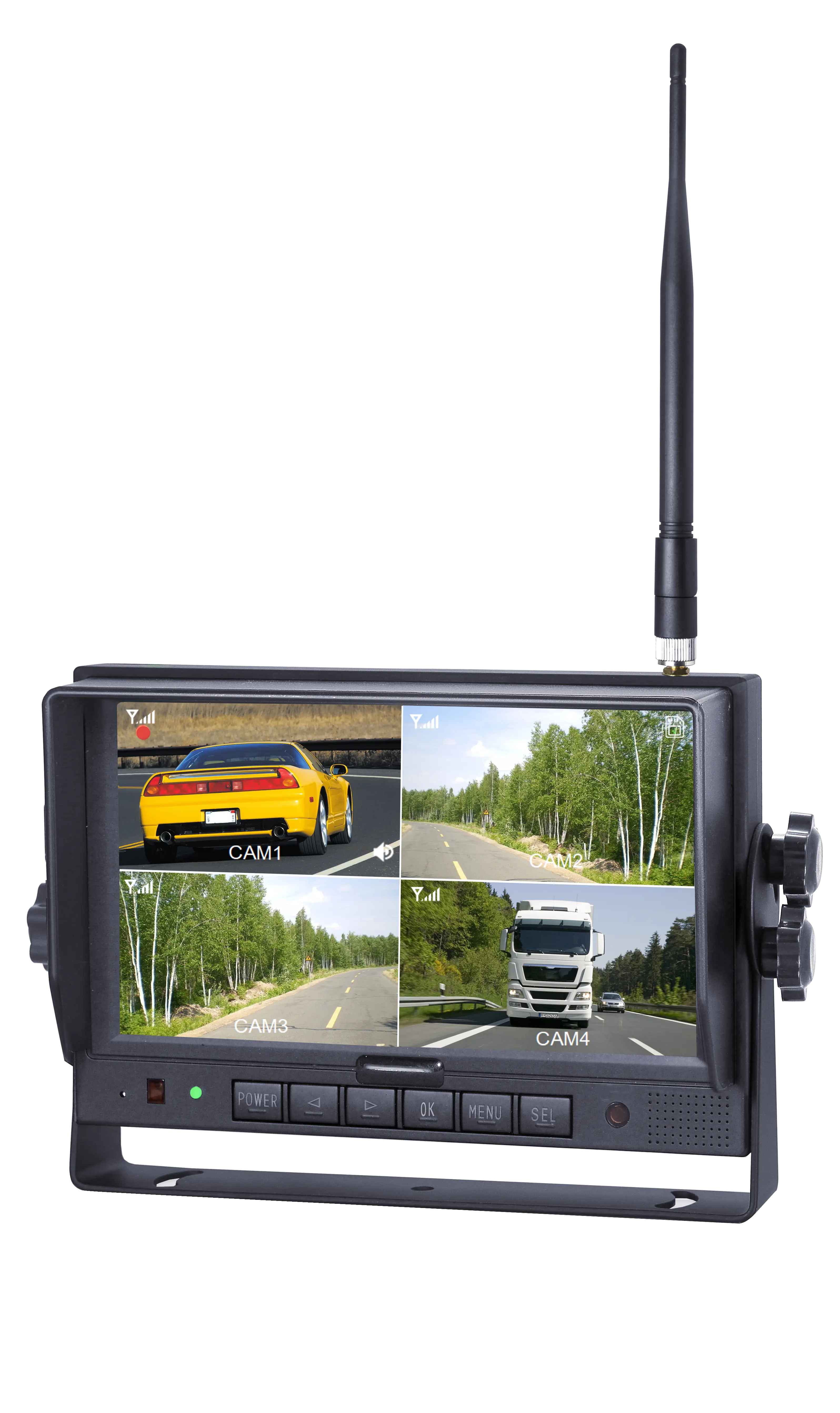

| VST-M4048 | 7" HD Wireless Touchscreen Monitor | Included |

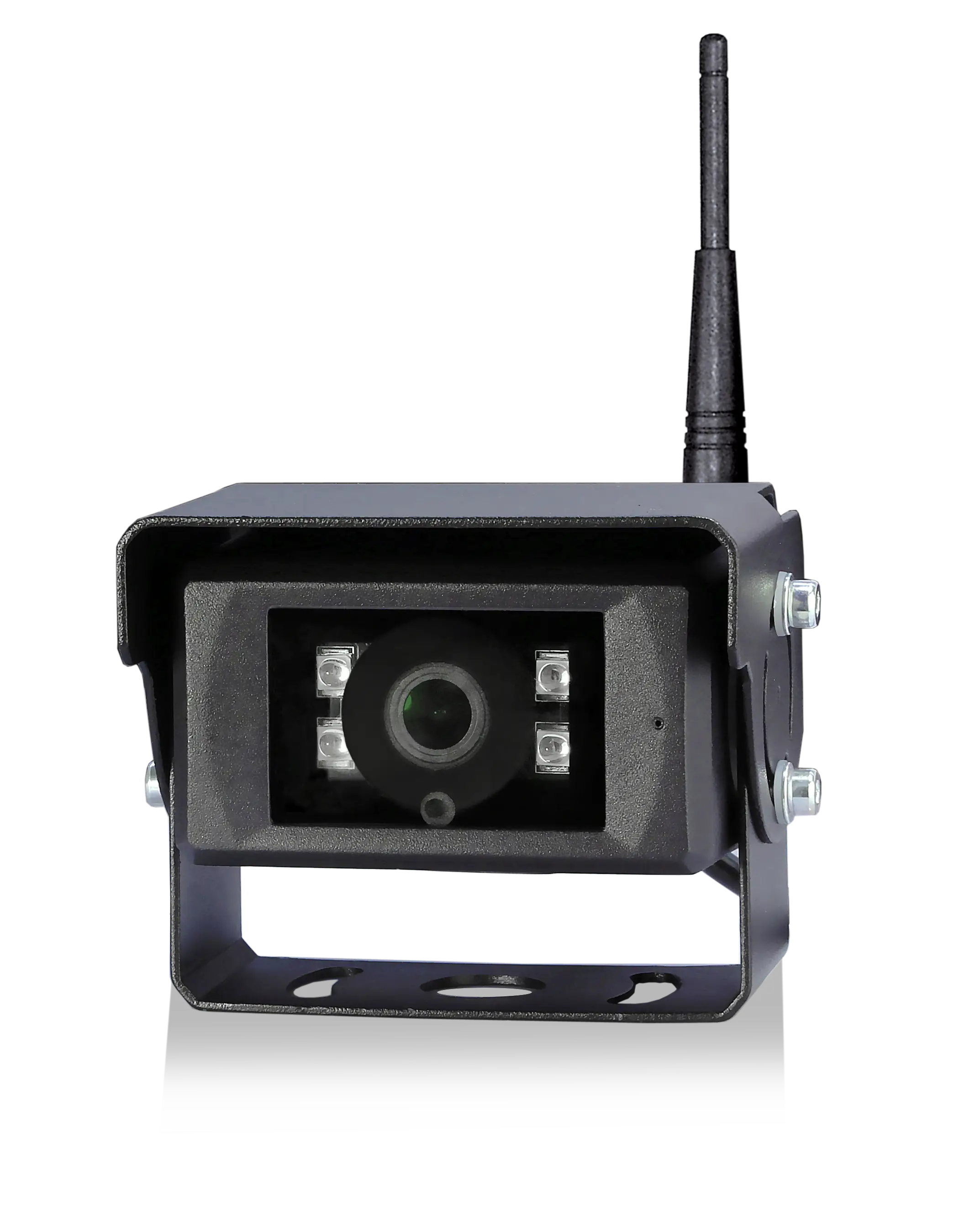

| VST-C6792 | HD Wireless IR Camera 130° with Heater, up to 4 cameras | Included |
